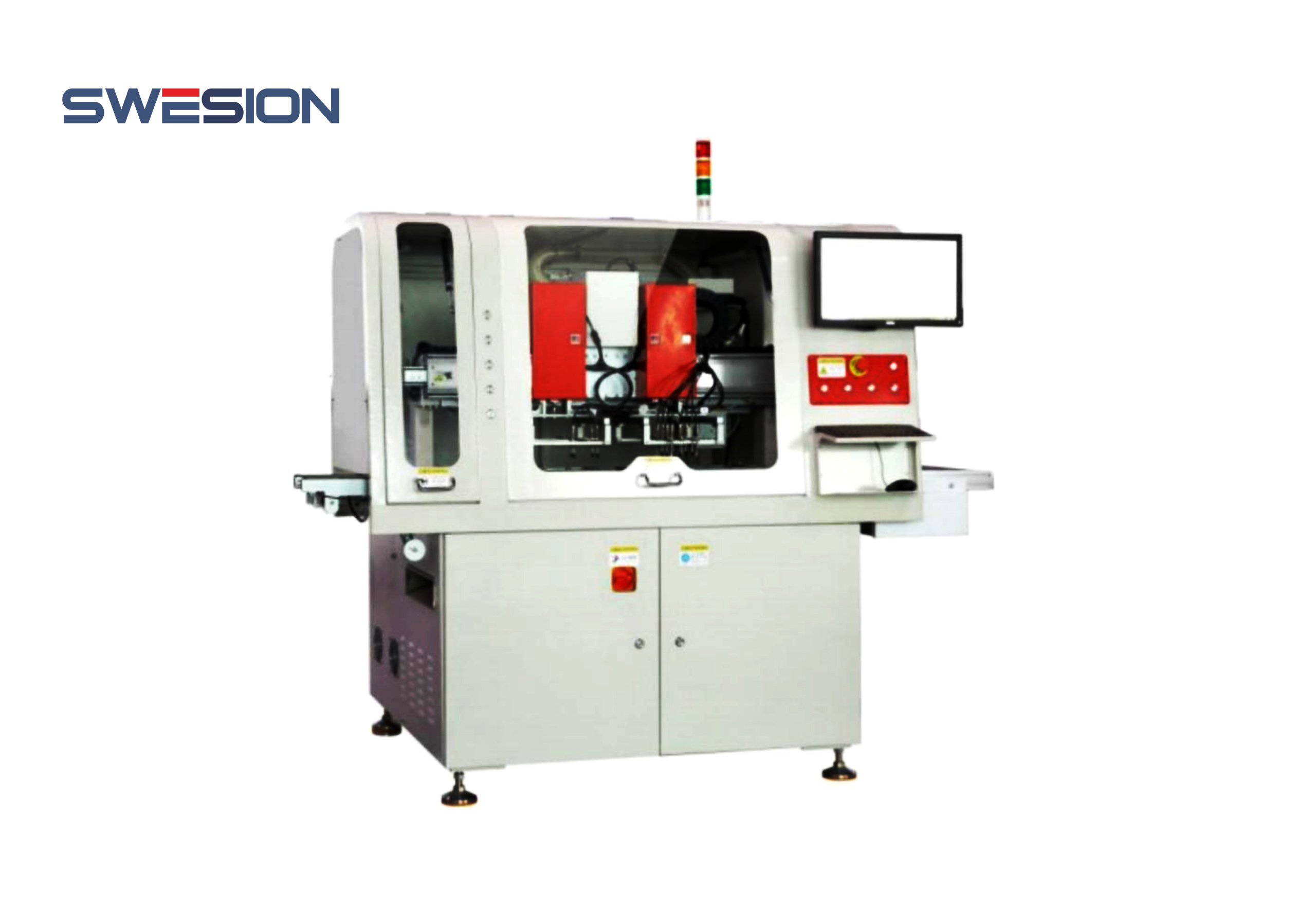

S300 Inline Fully-automatic PCB Separator
- Two independent wark tables
- High routing speed up 100 mm/s
- Tool life and status monitor and control
- Automatic router bit exchange
- ESD certified high-speed spindle
- Vision assist to set routing path

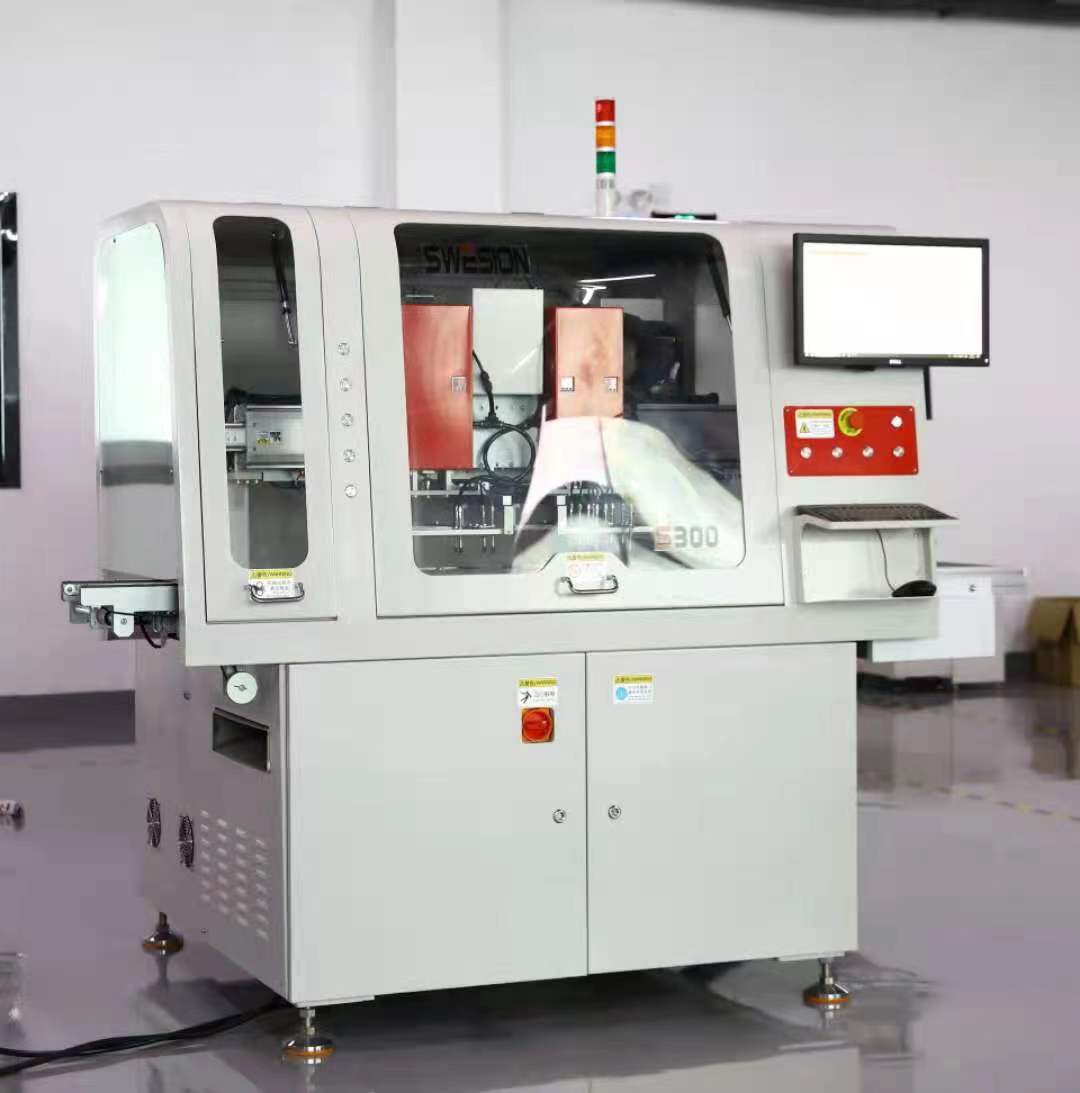

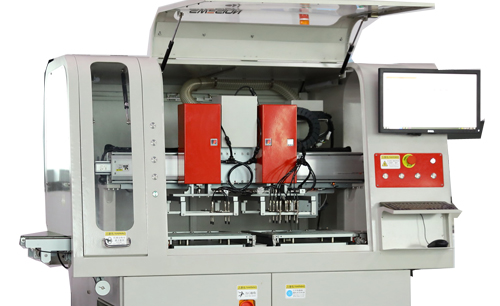

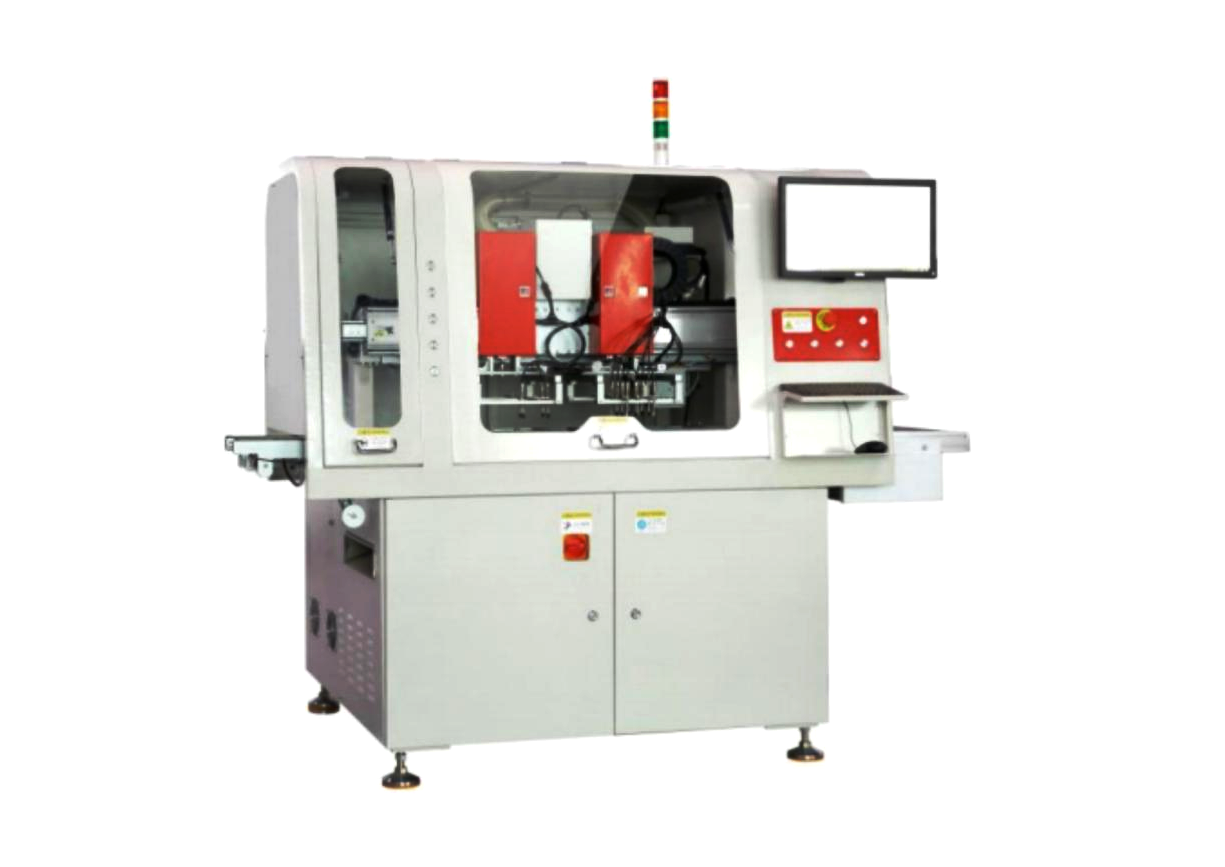

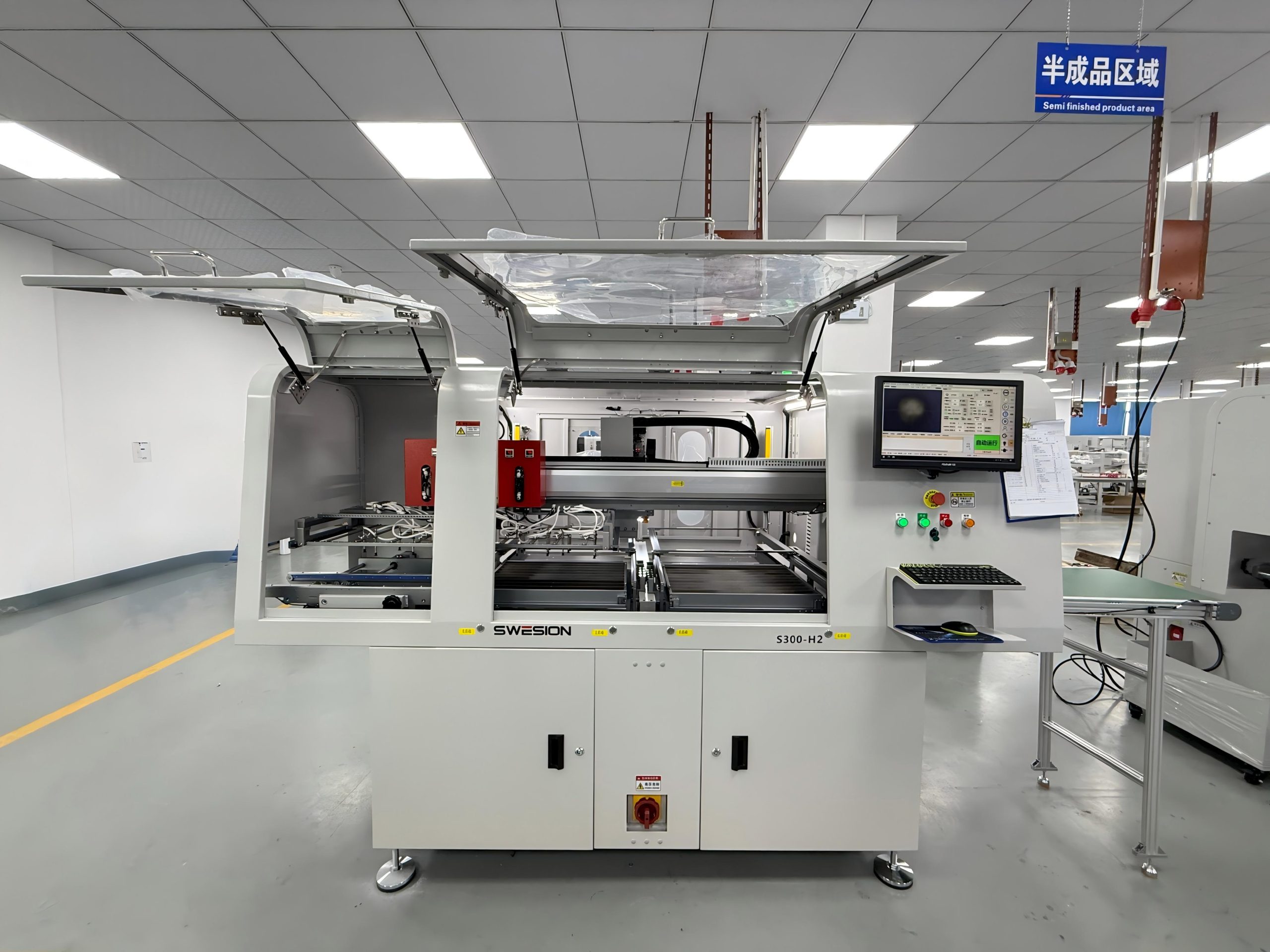

SWESION S300 Inline Fully-automatic PCB Separator
1.Functional Features
- Two Independent Work Tables: When one work table is in cutting operation, the other is for loading/unloading and waiting to be cut. Repeating this cycle minimizes the idle time of the cutting tool.

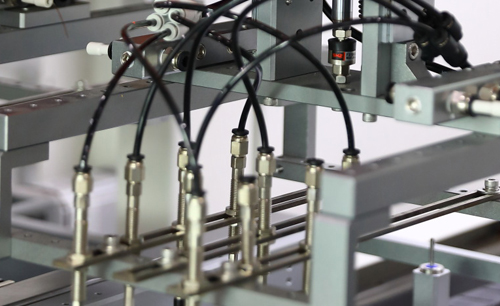

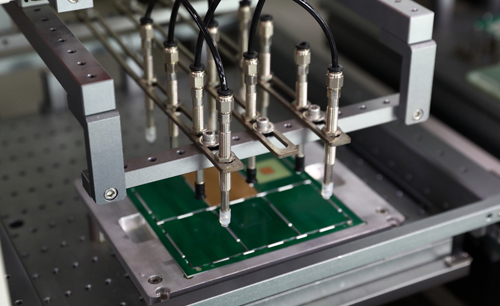

- Material Pick-and-Place Arm: The pick-and-place arm grabs cut circuit boards and frames, disposes of side scraps into the scrap box, then places PCBs on the conveyor belt for transfer to the next workstation.

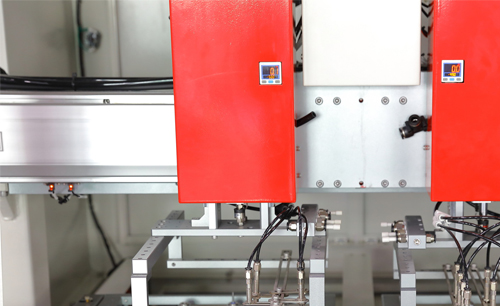

- Efficient Dust Removal and Depaneling System: Mainly composed of an anti-static high-speed spindle, anti-static brush, and upper dust suction duct, it effectively prevents dust residue from static electricity, ensuring product and machine cleanliness.
- Multifunctional Automatic Tool Change System: When the cutting tool reaches its preset service life or the tool inspection system detects a need for replacement, the system automatically swaps tools and resumes production quickly.
- Multifunctional Cutting Programming System: This system enables online vision-assisted point-to-point programming or full-image scanning for graphical programming. It also supports offline cutting program editing, reducing downtime and boosting productivity.
- Vacuum Dust Collection System It efficiently captures dust, ensuring product and machine cleanliness. Perfectly suits production in a dust-free workshop (Class 7 cleanroom).
2.Technical Parameters
| System Handle | X,Y,Z&R Axis |
| Axis | 6 axes: Feeding X-axis, Picking X-axis, Y1 (Slide 1), Y2 (Slide 2), Milling X-axis, Milling Z-axis |
| Driven motors | Step motor; Full closed loop AC servo motor |
| Repeatability accuracy | ±0.01mm |
| Work station | Two tables |
| Transfer Direction | From left to right |
| Fixed pressing plate | Fixed Pressing Plate |
| Working Area | 500mmx400mm |
| PCB thickness | 0.5mm～3.0mm |
| Cutting Accuracy | ±0.08mm |
| Spindle System | High speed anti static spindle |
| Max.Speed | 80,000rpm |
| Route bit change | Auto or manual |
| Route bit diameter | 0.8mm～3.0mm |
| Route bit break detection | Support |
| Dust collection system | Vacuum Cleaning System |
| Vacuum cleaner power | 5.0kW |
| Filtration | External dust collection box |
| Dust collection method | Downward |
| Operating system | Windows 10 |
| On-line Programming | Scan whole picture to realize on-line programming |
| Off-line Programming | Support |
| Dimensions | 2650+600mm(L)1450mm(W)1700mm+310mm(H) |
| Weight | 1000Kg |
| Power Supply | 3φ,AC380V 50Hz 8kW |
| Noise Level | <72dB |
3.Software Advantage
Self-developed Software
Strong pertinence: Our company will tailor a suitable software program according to customers requirements. The development of the software has undergone careful structural analysis, our technical staff’s excellent program design ideas and scientific research mode into the software analysis, further improve the software scientific research and practical value, improve efficiency.
Easy to use: The software is written entirely according to the specific program of the product, customers easily operate the control software, reduce the cost of training and learning.
Provide our best service: Self-developed software is written by our company’s R&D team, after-sales service is more guaranteed.
Off-line programming, improve program editing efficiency.
Can dock MES system, improve the level of informatization management.
